Why Power Cord Tensile and Torsion Testing Matters

In today's highly electrified world, electrical devices are an integral part of our lives. From the smallest bedside lamps to the colossal machinery in industrial plants, they all depend on power cords for a reliable connection to the power source. The quality and reliability of power cords are not just trivial matters; they are directly linked to the proper functioning of electrical devices and the safety of users. This is where the power cord pull force and torque testing machine comes into play, serving as a crucial safeguard in the electrical industry.

1. Working Mechanism: Mimicking Real - World Stress

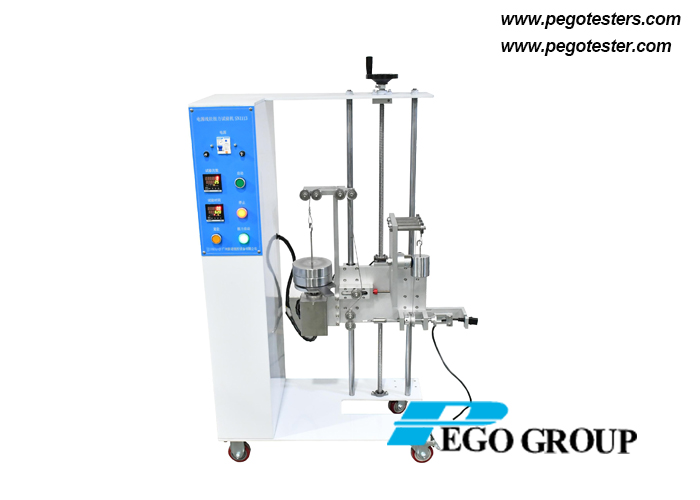

The power cord tensile and torsion testing machine operates by replicating the pulling and twisting forces that power cords are likely to encounter during actual use. A motor powers the rotation of an eccentric wheel, which in turn drives the sample to pull a weight. Each pull generates a specific force, and this is achieved by using the electromagnet release method to let the weight load the sample. To conduct torque testing, the force direction and the sample axis form a torque arm through a torque wheel. The ability to switch between tension weights and torsion weights makes it possible to meet different testing standards, ensuring comprehensive and accurate evaluations of power cord performance.

2. Structural Design: Precision and Durability

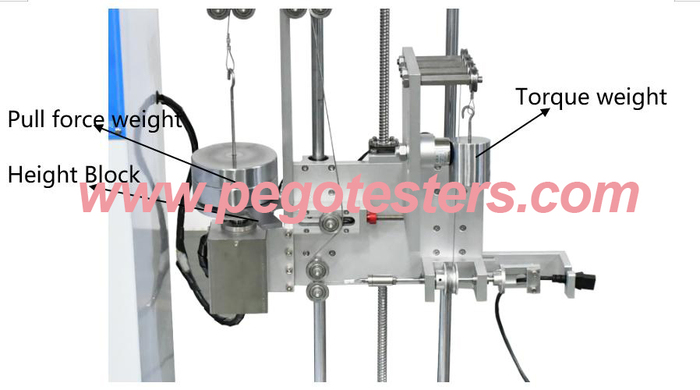

The machine is engineered with a motor cam push rod mechanism, a combination of a tension fixture and a torque fixture. A bearing is installed in the middle, which significantly reduces friction during torque testing, enhancing the accuracy of test results. The unique Z - shaped structure is a key feature, enabling the fixture to firmly grip the sample. It can securely hold power cords with a length of over 150mm on the bottom surface. This design is particularly useful for testing the clamping terminals of large household appliances such as refrigerators and washing machines, ensuring that the power cords are firmly attached and can withstand normal usage stresses.

During the tensile test, the pulling force loading system applies a gradually increasing force to the power cord at a pre - set rate. The test continues until the specified force value is reached or, unfortunately, the power cord fails. In the torsion test, the torsion loading system twists the power cord by a certain angle, allowing for the precise assessment of its performance under torsional stress.

3. Wide - Ranging Applications: Across Multiple Industries

3.1 Home Appliance Industry

In home appliance manufacturing, power cord quality matters a great deal. Manufacturers use the power cord tensile and torsion testing machine to randomly inspect purchased power cords during production. This ensures each cord meets the appliance's requirements, preventing malfunctions and safety risks from faulty cords. For instance, a poor - quality power cord in a refrigerator can cause intermittent power, spoil food, or even start a fire.

3.2 Electronic Device Manufacturing Industry

As electronic devices like mobile phone chargers and laptop power adapters get smaller and more portable, the need for flexible and durable power cords has grown significantly. The power cord tensile and torsion testing machine is vital for assessing how well these cords perform in various usage situations. It helps manufacturers make sure their products can endure frequent bending, twisting, and pulling in daily use.

3.3 Industrial Equipment Field

Industrial machinery operates in tough environments, subjecting power cords to strong pulling and twisting forces. Testing industrial equipment power cords with this machine is key to stable operation. By finding cord weaknesses before installation, companies can avoid production stoppages due to cord failures. This saves time and money and boosts overall production efficiency.

4. Maintenance: Key to Long - Term Performance

Regular maintenance is essential to keep the power cord tensile and torsion testing machine in optimal condition. Before starting any testing, it is necessary to check whether the fasteners are loose and tighten them if needed. After multiple tests, the steel wire rope is prone to damage, so it is advisable to have spare ropes ready for timely replacement. When the machine is not in use, the weights should be removed to prevent unnecessary stress on the components. Additionally, always remember to cut off the power supply to ensure safety and prevent any potential electrical issues.

In conclusion, the power cord tensile and torsion testing machine is an irreplaceable tool in the electrical industry. As technology advances and the demand for safer and more reliable electrical products grows, this testing machine will continue to evolve. It will be upgraded with more advanced features and innovative technologies to meet the ever - increasing quality requirements of power cords, thereby providing stronger support for electrical safety.
